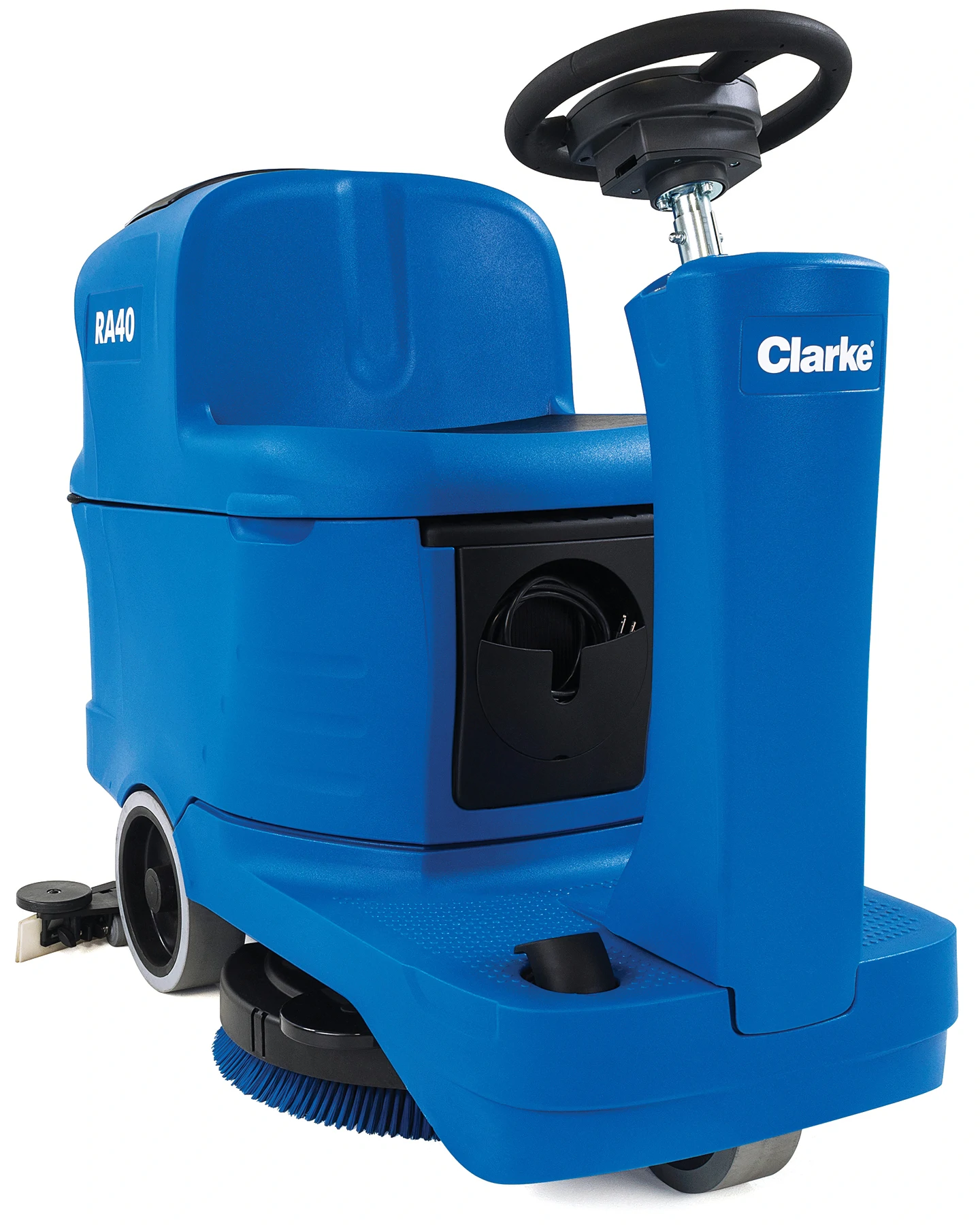

Clarke RA40 20D A150 OBC PH Micro Rider Scrubber
Clarke | SKU CLA-56384074
Categories: Automatic Floor Scrubbers
RA40 Micro rider scrubber
This compact, highly maneuverable 20 inch autoscrubber
is designed to elevate the cleanliness and health and
safety of your facility to the next level. Every cutting-edge
feature-from the ultra-sharp turning radius to the onboard
chemical mixing system-has been engineered to the high
performance and reliability standards you have come to
expect from Clarke.
Clarke RA40 20D micro rider scrubber, 140 Ah AGM batteries
A seated micro rider with a 20 inch disc deck. It is a true rider with an operator seat and open leg room, not a stand-on machine, which matters on long shifts where fatigue is the limiting factor rather than machine capacity.
At 50 inches long it is small enough to work areas that normally rule out a rider, which is the point of the micro rider class: rider comfort and productivity in a footprint closer to a walk-behind. The turning radius is unusually tight for a seated machine.
A note on the model code: the A150 in Clarke's name is a nominal designation. The pack actually supplied is 140 Ah AGM, Nilfisk part 56380239. The related 56384073 is a genuinely different machine on 130 Ah wet cells, not the same unit under another number.
Cleaning path: 20 in disc
Batteries: (2) 140 Ah AGM maintenance-free, included, with onboard charger
Dimensions: 50 x 22 x 40 in
Part number: 56384074
| Format | 50 x 22 x 40 in |
| Power source | Battery powered, 24 V |
| Brand | Clarke |
| Dimensions (L x l x H) | 127.0 x 55.9 x 101.6 cm |
This compact, highly maneuverable 20 inch autoscrubber is designed to elevate the cleanliness and health and safety of your facility to the next level. Every cutting-edge feature-from the ultra-sharp turning radius to the onboard chemical mixing system-has been engineered to the high performance and reliability standards you have come to expect from Clarke.
- Intuitive design for minimal training
- Dashboard with digital display placed in the steering wheel
- Large operator seat and wide space for legs for all different users
- Intuitive icon buttons for vacuum, brush rotation and water/detergent flow
- Wide range of accessories to make the cleaning job as faster and comfortable as possible
| Power source | Battery powered, 24 V. No power cord required. |
| Voltage (V) | 24 V |
| Max. running time (hour) | 2.5 hours |
| Drive motor hp (W) | 0.6 hp (400 W) |
| Brush motor (W) | 0.6 hp (450 W) |
| Vacuum motor | 0.42 hp (310W) |
| Vacuum waterlift | 39 in (9.8 KPA) |
| IP protection class | X4 |
| Sound pressure level (dB(A)) | 68 dB A ± 3 |
| Tank capacity (l) | 18.5 gal (70 L) |
| Brush speed (RPM) | 155 RPM |
| Brush pressure | 33/66 lb (15/30 kg) |
| Path width | 20 in (51 cm) disc |
| Squeegee width | 28.3 in (72 cm) |
| Water flow (cl/m) | 0,75 / 1,5 / 3,0 |
| Max. transport speed mph (km/h) | 3.7 mph (6 kph) |
| Working speed (km/h) | 3.7 mph (6 kph) |
| Max. productivity at 2.5 mph | 22,000 sq ft/hr (2,044 sq k/hr) |
| Productivity at 3.7 mph | 32,560 sq ft/hr (3,025 sq k/hr) |
| Max. climbing rate (%) | 2% |
| Min. turn-around aisle width (cm) | 70.9 in (180 cm) |
| Gross vehicle weight lbs (kg) | 754 lb (342 kg) |
| Dimensions (W/O Squeegee) | 50 x 22 x 40 in (127 x 55 x 102 cm) |
SmartFlow technology 20 inch scrubbing width, 18.5 gallon water tanks and 3.7 mph working speed Chemical mixing system gives full control over detergent use making possible to use chemicals only when really needed Water and chemical flow can be changed while working according to floor conditions
