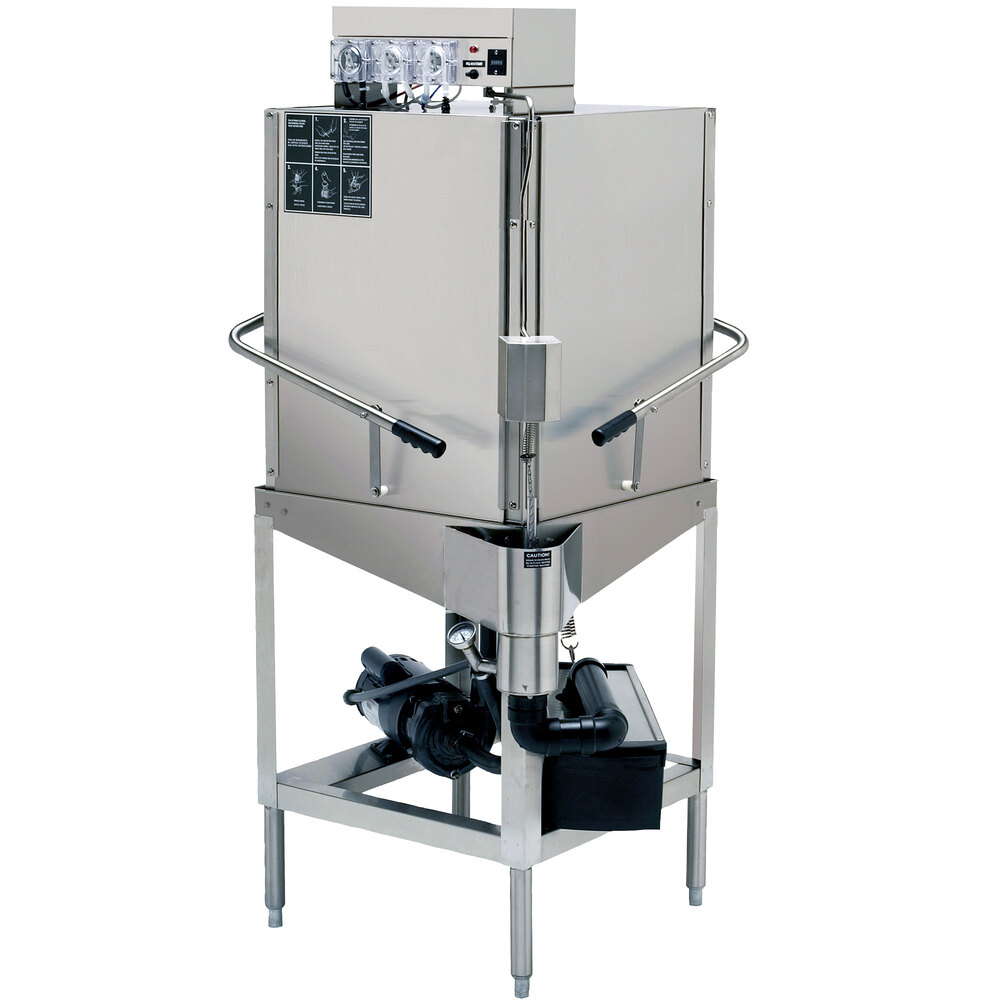

CMA Dishmachines E-C-EXT Extended Corner Low Temp Dishwasher, 115V
CMA Dishmachines | SKU CMA-1603-15
Categories: Dishwashers
Single rack, chemical sanitizing door-type dishwasher with an extended 20-1/2 in door opening. The model converts between straight-through, corner and 3-door installation and washes 40 racks (160 covers) per hour.
Tags :
| Brand | CMA Dishmachines |
CMA spec sheet (EN) / Fiche technique CMA (EN)
Download
Single rack, chemical sanitizing door-type dishwasher with an extended 20-1/2 in door opening. The model converts between straight-through, corner and 3-door installation and washes 40 racks (160 covers) per hour.
- Single rack convertible model (straight-through, corner or 3-door)
- 40 racks / 160 covers per hour
- 20-1/2 in door opening for maximum clearance
- Outside drain sump, chemical pumps, prime switches, top mounted controls
- Automatic start/stop and delime switch
| Model | CMA E-C-EXT |
|---|---|
| CMA part number | 01603.15 |
| Sanitizing | Chemical (low temperature) |
| Capacity | 40 racks per hour |
| Water consumption | 1.01 gal per rack (3.82 L) |
| Maximum clearance | 20-1/2 in |
| Electrical | 115V, 16A |
| Wash temperature | 120°F min. / 140°F recommended (49 / 60°C), incoming hot water |
| Rinse temperature | 120°F min. / 140°F recommended (49 / 60°C), incoming hot water |
| Dimensions (W x D x H) | 25-3/4 x 25-3/4 x 59 to 60 (80-1/2 doors open) in |
| Shipping weight | 262 lb (118.8 kg) |
