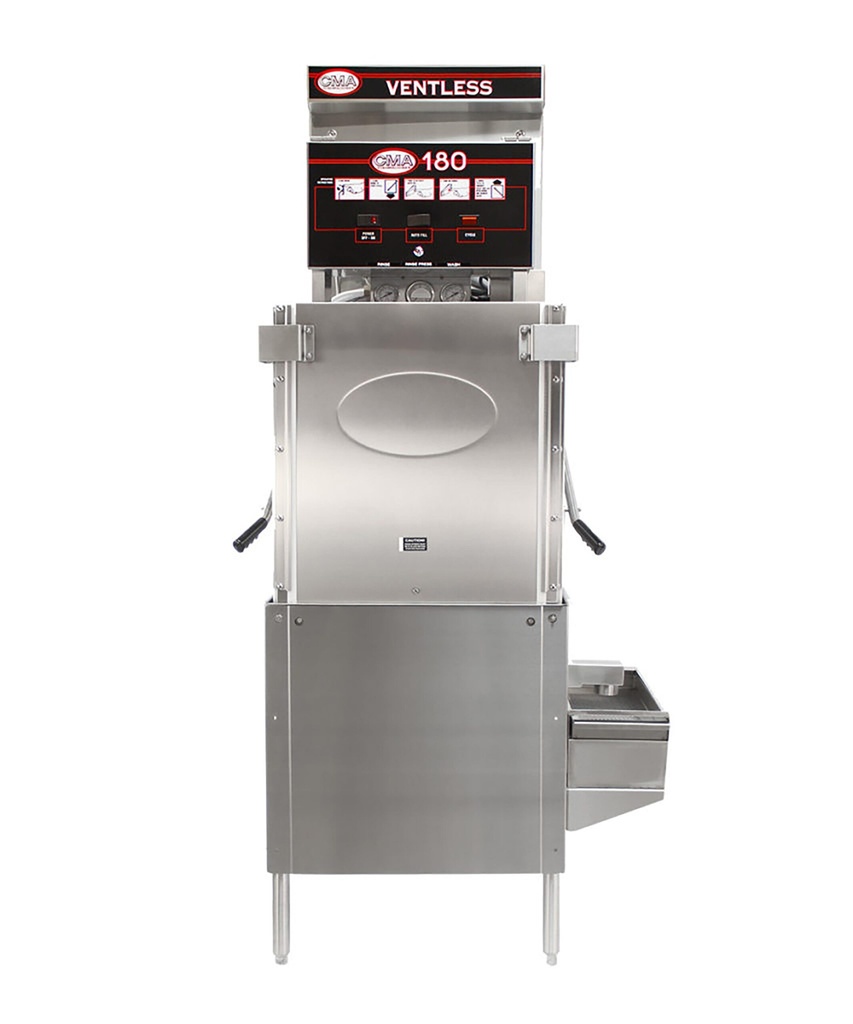

CMA Dishmachines 180-VL High Temp Ventless Dishwasher with Booster, 3-Phase
CMA Dishmachines | SKU CMA-1633-00
Categories: Dishwashers
Ventless, high temperature dishwasher. Its heat recovery system condenses the vapor and preheats the incoming cold rinse water, so no vent hood is required. The 12 kW booster is built in.
Tags :
| Brand | CMA Dishmachines |
CMA spec sheet (EN) / Fiche technique CMA (EN)
Download
Ventless, high temperature dishwasher. Its heat recovery system condenses the vapor and preheats the incoming cold rinse water, so no vent hood is required. The 12 kW booster is built in.
- Ventless: no vent hood required
- Heat recovery preheats incoming cold water to the booster
- Built-in 12 kW booster
- Safe-T-Temp assures a 180°F final rinse
- All stainless construction
| Model | CMA 180-VL |
|---|---|
| CMA part number | 01633.00 |
| Sanitizing | High temperature |
| Capacity | 40 racks per hour |
| Water consumption | 0.89 gal per rack (3.37 L) |
| Electrical | With the required 12 kW booster: 208V 1-phase 78A / 240V 1-phase 88A; 208V 3-phase 49A / 240V 3-phase 55A; 480V 3-phase 25A |
| Wash temperature | 155-160°F (68-71°C) |
| Rinse temperature | 180-195°F (82-91°C) |
| Dimensions (W x D x H) | 25-1/2 x 29 x 85-5/16 to 86-5/16 in |
| Shipping weight | 528 lb (239.5 kg) |
