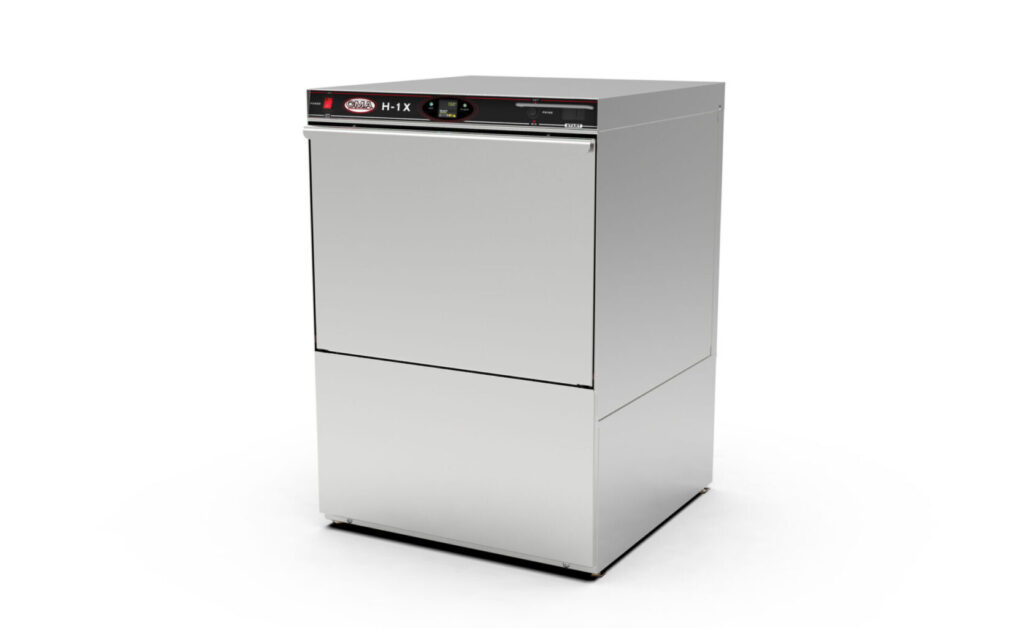

CMA Dishmachines H-1X High Temp Undercounter Dishwasher with Dispenser, 208-240V
CMA Dishmachines | SKU CMA-1685-00
Categories: Dishwashers
High temperature undercounter dishwasher with a Dump & Fill cycle: the wash water is fully drained and refilled at every cycle. Safe-T-Temp ensures the high temperature sanitizing rinse.
Tags :
| Brand | CMA Dishmachines |
CMA spec sheet (EN) / Fiche technique CMA (EN)
Download
High temperature undercounter dishwasher with a Dump & Fill cycle: the wash water is fully drained and refilled at every cycle. Safe-T-Temp ensures the high temperature sanitizing rinse.
- Dump & Fill cycle: wash water fully drained and refilled every cycle
- Safe-T-Temp ensures high temperature sanitizing rinse
- 24 racks / 96 covers per hour, 14-1/2 in clearance
- 5 kW internal booster and 2 kW wash tank heater
- LCD information display controls; built-in dispenser
| Model | CMA H-1X |
|---|---|
| CMA part number | 01685.00 |
| Sanitizing | High temperature |
| Capacity | 24 racks per hour |
| Water consumption | 1.4 gal per rack (5.3 L) |
| Maximum clearance | 14-1/2 in |
| Electrical | 208V 22A / 240V 24A, 1-phase, 60Hz; 5 kW booster (5.5 kW at 240V), 2 kW wash tank heater |
| Wash temperature | 150-160°F (66-71°C) |
| Rinse temperature | 180-195°F (82-91°C) |
| Dimensions (W x D x H) | 23-7/8 x 25 x 33-1/2 in |
| Shipping weight | 165 lb (74.8 kg) |
