DryPaths DP-2736 – Landing Heating Mat 36" x 27", 270 W
DryPaths | SKU DRX-DP-2736
Categories: Matting
DryPaths DP-2736 heated landing mat for a porch, entrance or top step. 36" x 27" (91.5 x 58 cm), 120 V, 270 W, 2.3 A. Up to 5 mats on one cord on a 15 A circuit. Power cord sold separately. 5-year warranty.
Heated Mats for Snow Melting
Drypaths heating mats are designed with everyone's safety in mind. By preventing the buildup of snow and ice, they are ideal for residential and commercial entrances, staircases, emergency exits, and pedestrian walkways. Perfect for access ramps as well, these mats cater to the needs of individuals with reduced mobility, offering protection against slips, falls, and injuries.

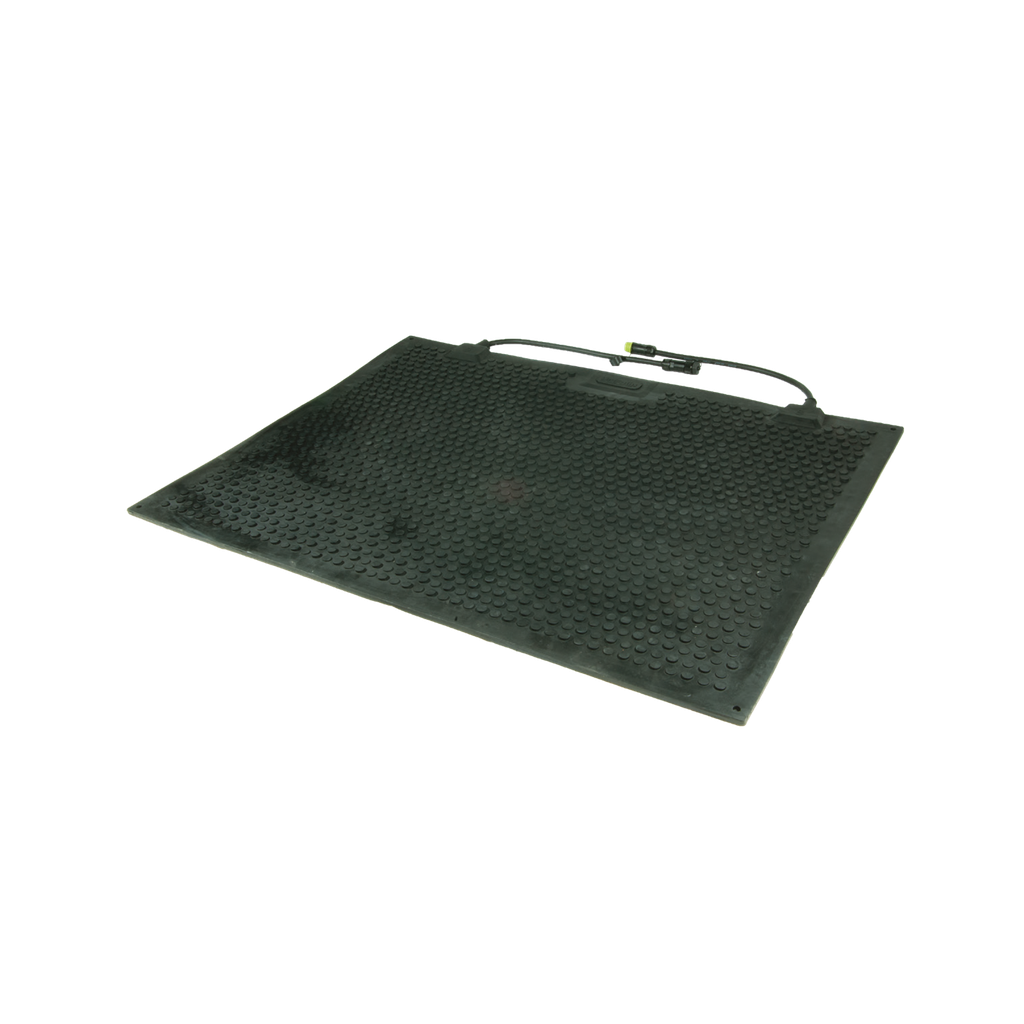

DryPaths DP-2736 heated landing mat
Sized for a doorway landing, porch or top step. Keeps the surface people actually stand on clear of snow and ice, which is where most winter slips happen.
Specifications
| Model | DP-2736 |
| Application | Landing, porch, entrance |
| Size | 36 in. x 27 in. (91.5 x 58 cm) |
| Thickness | 0.3 in. (8 mm) |
| Voltage | 120 V |
| Power | 270 W |
| Current | 2.3 A |
| Weight | 18.8 lb (8.16 kg) |
| Surface temperature | 55 to 65 °C (130 to 150 °F) |
| Material | 100 % recycled rubber, UV resistant, waterproof |
| Warranty | 5 years against defects in materials and workmanship |
How many can be connected together?
Mats link to each other through integrated watertight connectors and run from a single power cord. On a standard 15 A / 120 V circuit the manufacturer allows a maximum continuous load of 12 A (1,440 W), which is up to 5 DP-2736 mats on one cord. Mixed runs are also possible, for example one landing mat with up to nine DP-3810 stair mats.
What else you need

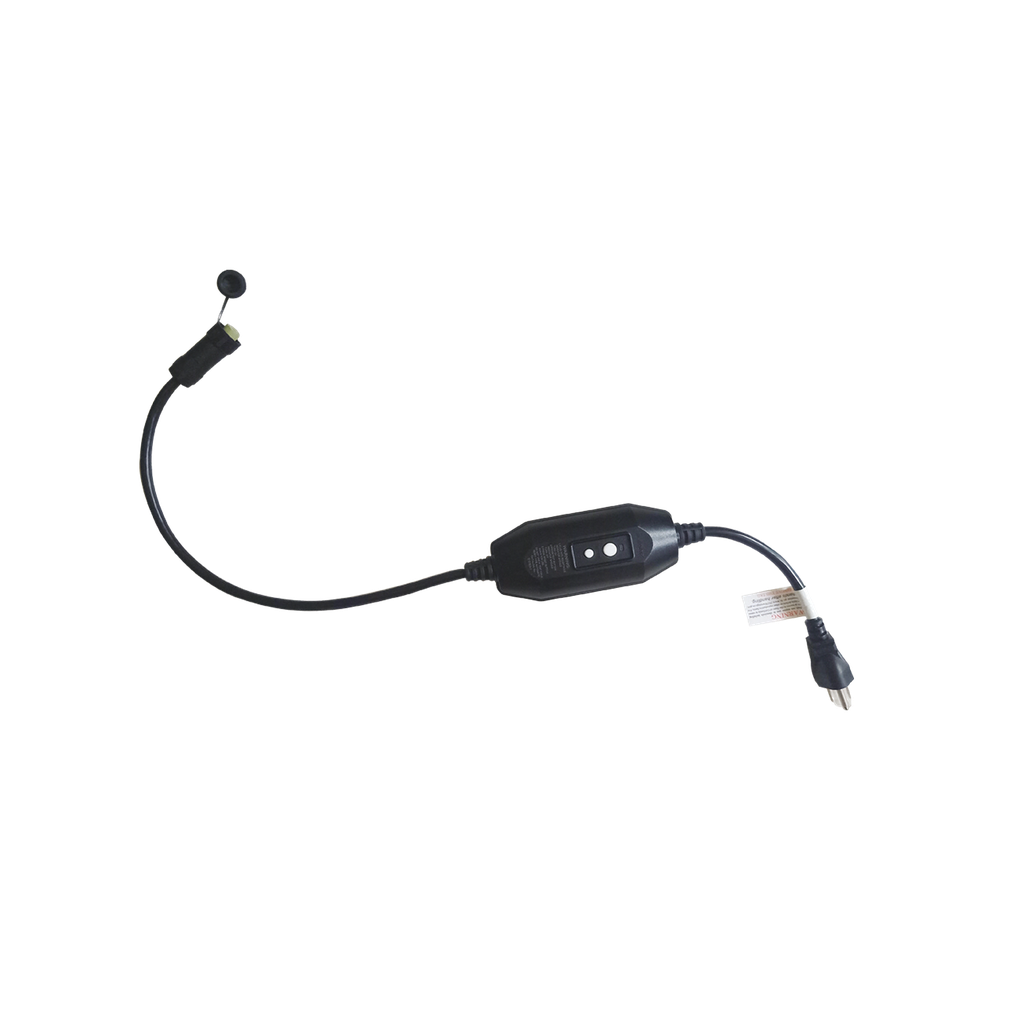

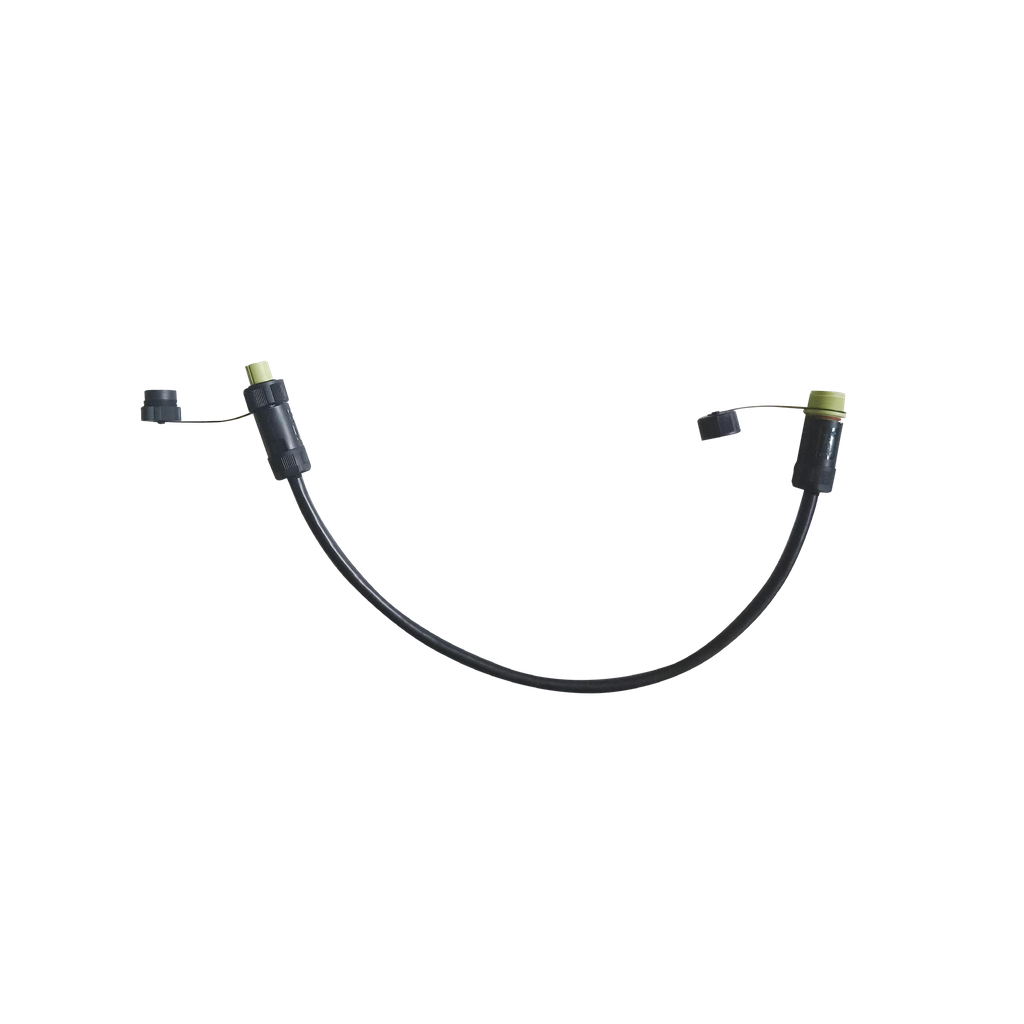

The power cord is a separate item and one cord serves the whole run. Choose DPGFCI-10 (10 ft, with in-line GFCI) where the receptacle is not already GFCI protected, or DPCCF120-10 (10 ft, no GFCI) where it is. Interconnect extension cables DPCCMF24 through DPCCMF50 are available if the layout needs extra reach.
Important
Outdoor use only. Do not operate above 5 °C (40 °F) ambient. GFCI protection is required. Plug directly into a properly grounded outlet, never through a household extension cord. Secure using the 3/8 in. corner grommets or 3M VHB 4941 tape. Clean and store flat indoors at the end of the season.
Tapis chauffant DryPaths DP-2736 pour palier
Dimensionné pour un palier d'entrée, une véranda ou une marche supérieure. Garde dégagée la surface où les gens s'arrêtent réellement, là où se produisent la plupart des chutes hivernales.
Fiche technique
| Modèle | DP-2736 |
| Application | Palier, véranda, entrée |
| Dimensions | 36 po x 27 po (91,5 x 58 cm) |
| Épaisseur | 0,3 po (8 mm) |
| Tension | 120 V |
| Puissance | 270 W |
| Intensité | 2,3 A |
| Poids | 18,8 lb (8,16 kg) |
| Température de surface | 55 à 65 °C (130 à 150 °F) |
| Matériau | Caoutchouc 100 % recyclé, résistant aux UV, étanche |
| Garantie | 5 ans contre les défauts de matériaux et de fabrication |
Les tapis se raccordent entre eux par connecteurs étanches intégrés et fonctionnent à partir d'un seul cordon. Sur un circuit standard de 15 A / 120 V, le fabricant permet une charge continue maximale de 12 A (1 440 W), soit jusqu'à 5 tapis DP-2736 sur un même cordon. Le cordon d'alimentation est vendu séparément (DPGFCI-10 avec DDFT intégré, ou DPCCF120-10 sans DDFT). Usage extérieur seulement. Ne pas utiliser au-dessus de 5 °C (40 °F). Protection DDFT obligatoire.
Données techniques tirées du guide d'installation et de sécurité DryPaths de Drexma Industries, rév. 10-2024.
| Brand | DryPaths |
Drypaths heating mats are designed with everyone's safety in mind. By preventing the buildup of snow and ice, they are ideal for residential and commercial entrances, staircases, emergency exits, and pedestrian walkways. Perfect for access ramps as well, these mats cater to the needs of individuals with reduced mobility, offering protection against slips, falls, and injuries.
- Made from 100% recycled rubber
- Highly durable for harsh winter conditions
- One-piece design with a 1/2” thickness
| Voltage (V) | 120 V |
| Power | 120W, 1A | 270W, 2.3A | 420W, 3.5A |
| Thickness | 1/2" |
| Warranty | 5 years |
