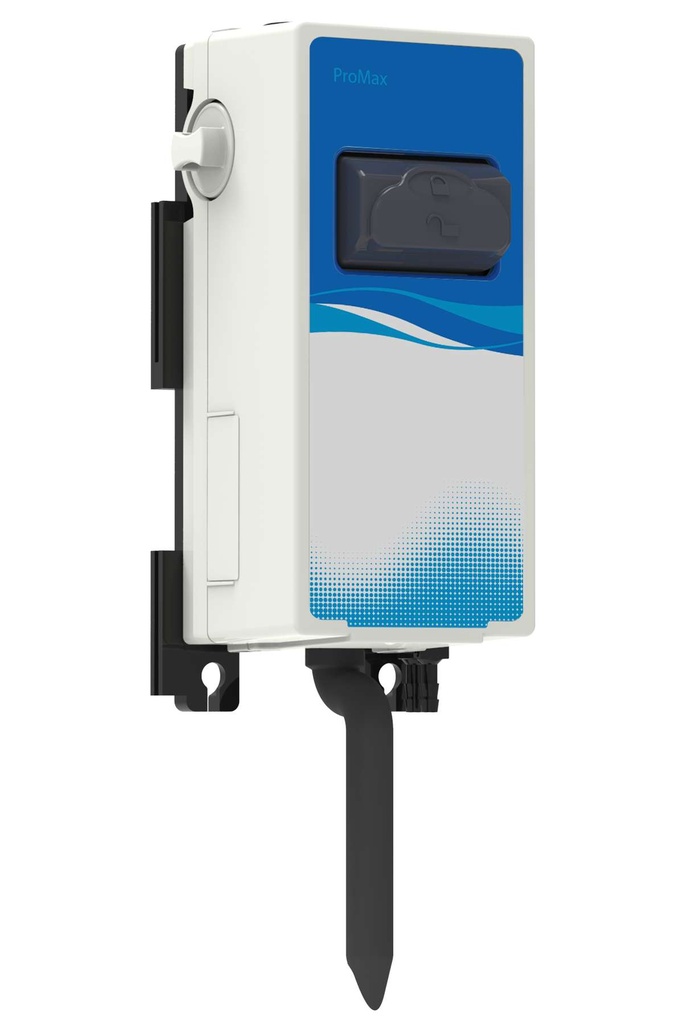

SEKO ProMax Venturi Chemical Dilution Dispenser – 1 product, button activation, air-gap backflow, 4 GPM
Seko | SKU SEK-PXB1A16U0000
Categories: Dilution Systems
Push-button wall dispenser for spray bottles, mop buckets and scrubbers.
Tags :
| Brand | Seko |
Push-button wall doser for spray bottles, buckets and scrubbers.
The ProMax Button is the button-activated version of SEKO's ProMax wall-mounted chemical dilution system, plumbed straight into the water supply to deliver a ready-to-use, accurately diluted cleaning solution on demand, for spray bottles, mop buckets and auto-scrubbers. Depending on the venturi fitted, flow ranges from about 1 gal/min for a spray bottle up to 8 gal/min for an auto-scrubber, so staff fill containers quickly, with no measuring and no pre-mixing of concentrate.
Push-button activation opens up the higher-flow ProMax configurations, including an 8 GPM blue-venturi model, alongside the standard 1 GPM and 3.5 to 4 GPM options, and the range comes in single-product or four-product versions, so one station can feed several chemicals from separate, colour-coded outlets.
Like the rest of the ProMax range, the button units use SEKO's patented hydrodynamic technology, a housing that is 95 % customisable with branding, and a built-in backflow prevention design (flex-gap or air-gap) compliant with EN1717. The housing and button mechanism are tamper-proof, and an external tip seat allows the dilution rate to be adjusted without dismantling the unit.
- Push-button activation, released automatically once the container is full
- Available in 1 GPM, 3.5 to 4 GPM and 8 GPM flow configurations, in single-product or four-product versions
- Delivers a ready-to-use solution at up to 8 gal/min depending on venturi and container
- Built-in backflow prevention (flex-gap or air-gap), compliant with EN1717
- Magnetic activation valve rated to 131 psi
- External tip seat allowing the dilution rate to be adjusted without dismantling the unit
- 95 % of the front panel can be customised with branding or product identification
- Optional cartridge filter available for difficult water conditions
Applications: Hotels and restaurants, Foodservice kitchens, Healthcare facilities, Office and institutional cleaning, Warehousing, Locker rooms and washrooms, Dairy and agri-food processing, Manual warewashing stations
| Specification | Value |
|---|---|
| Number of products | 1 |
| Water flow rate (GPM) | 4 |
| Activation | Button |
| Backflow prevention | Air-gap |
| Shipping weight | 5.25 lb (2.381 kg) |
| Package dimensions | Width: 5 in, Depth: 4 9/16 in, Height: 10 1/4 in |
| Seko manufacturer code | PXB1A16U0000 |
| Brand | SEKO |
