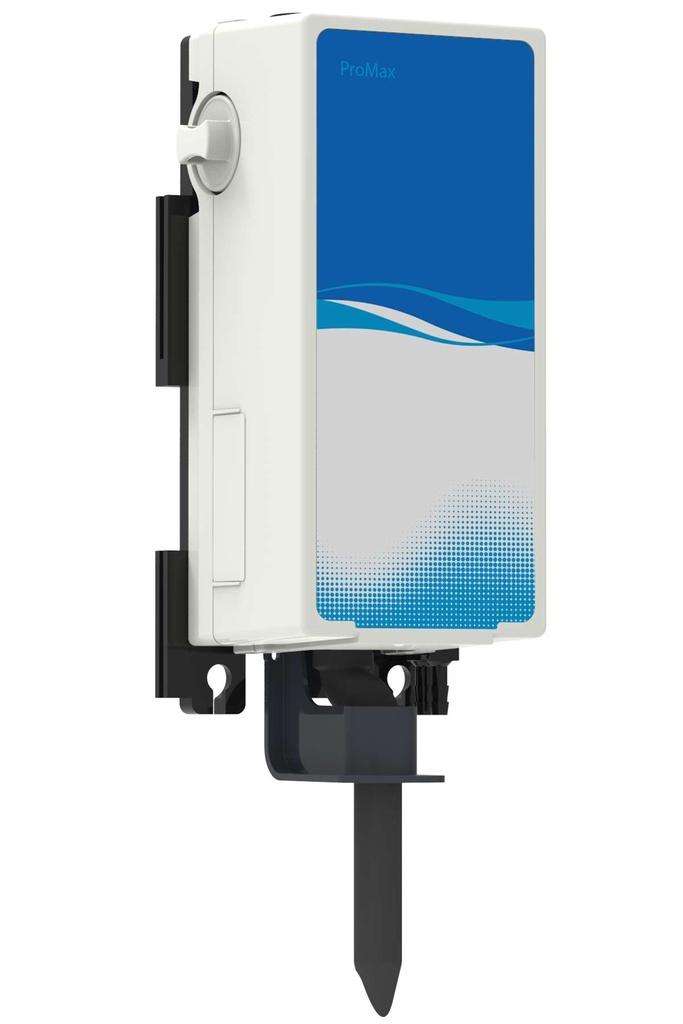

SEKO ProMax Venturi Chemical Dilution Dispenser – 1 product, slide activation, flex-gap backflow, 1 GPM

Slide-activated wall doser for spray bottles, buckets and scrubbers.

The ProMax Slide is the slide-activated version of SEKO's ProMax wall-mounted chemical dilution system, built for sites that fill spray bottles, mop buckets and auto-scrubber tanks throughout the day. Plumbed straight into the water supply, the unit draws concentrate through a venturi and delivers a ready-to-use, accurately diluted solution at up to 8 US gallons per minute depending on the venturi fitted; staff stop eyeballing dilution ratios and stop handling concentrate directly.

A team mixing chemicals by guesswork wastes product, dilutes inconsistently from shift to shift and is exposed to concentrate for no reason. The ProMax Slide's slide tap activates the venturi with a single sliding movement, and the unit comes in single-product or four-product versions, so one wall station can feed several cleaning products from separate, colour-coded outlets.

What sets it apart: SEKO's patented hydrodynamic technology, a fully modular housing with 95 % of the front panel customisable, and a built-in backflow prevention design (flex-gap or air-gap), compliant with EN1717, that protects the water supply without a separate backflow device. The housing and activation mechanism are tamper-proof, and an optional cartridge filter is available for difficult water conditions.

• Slide activation, hands-free, in a single movement
• Delivers a ready-to-use solution at up to 8 gal/min depending on venturi and container (spray bottle about 1 gal/min, mop bucket about 3.7 gal/min, auto-scrubber about 8 gal/min)
• Available in single-product or four-product versions
• Built-in backflow prevention (flex-gap or air-gap), compliant with EN1717
• Magnetic activation valve rated to 131 psi
• External tip seat allowing the dilution rate to be adjusted without dismantling the unit
• 95 % of the front panel can be customised with branding or product identification
• Optional cartridge filter available for difficult water conditions

Applications: Hotels and restaurants, Foodservice kitchens, Healthcare facilities, Office and institutional cleaning, Warehousing, Locker rooms and washrooms, Dairy and agri-food processing, Manual warewashing stations
