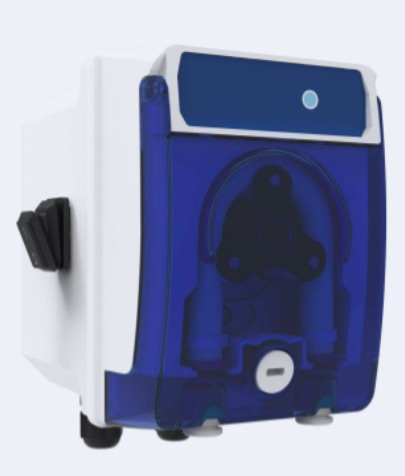

SEKO WareOne Peristaltic Dosing Pump WOPR – flow adjustable from 0.7 to 4.1 oz/min

Compact peristaltic pump for dishwashers and glasswashers.

The WareOne is SEKO's dosing pump for undercounter dishwashers and glasswashers, in a polished white housing with an easy-open front that lets the squeeze tube be replaced without tools. Three internal rollers and a wide ball bearing at the motor shaft interface reduce axial load on the tube, which SEKO states extends tube and motor life by 15 to 20 %.

For anyone running a bar, a small kitchen or a glasswashing station, the WareOne controls delay, dosing time and speed from a keypad display and microprocessor, and mounts on convenient modular wall brackets that allow two or more pumps to be coupled as needed. The housing is rated IP65 against impact, dust and chemical ingress, and Class II electrical insulation removes the need for an earth wire.

A dedicated WareOne SV variant doses powder detergent into a dishwasher without a conductivity probe, for a single-tank machine with one or two solenoid valves; it accepts two input signals, for first fill and rinse, directly from the dishwasher.

• Squeeze tube replacement without tools, through an easy-open front
• 3 internal rollers and a ball bearing at the motor shaft interface, extending tube and motor life by 15 to 20 % (per SEKO)
• Delay, dosing time and speed controlled from a keypad display and microprocessor
• IP65 housing (PP-reinforced fibreglass, soft polyurethane gasket) and Class II electrical insulation
• Modular wall brackets allowing two or more pumps to be coupled together
• Flow rate up to 1.8 gal/h depending on model (PR, PM, RT or PA)
• WareOne SV variant dosing powder detergent without a conductivity probe, for single-tank machines with 1 or 2 solenoid valves
• 1/4 in OD quick tube fittings and POE transport tubing included for chemical resistance

Applications: Glasswashers, Undercounter dishwashers, Hood or flight-type dishwashers
