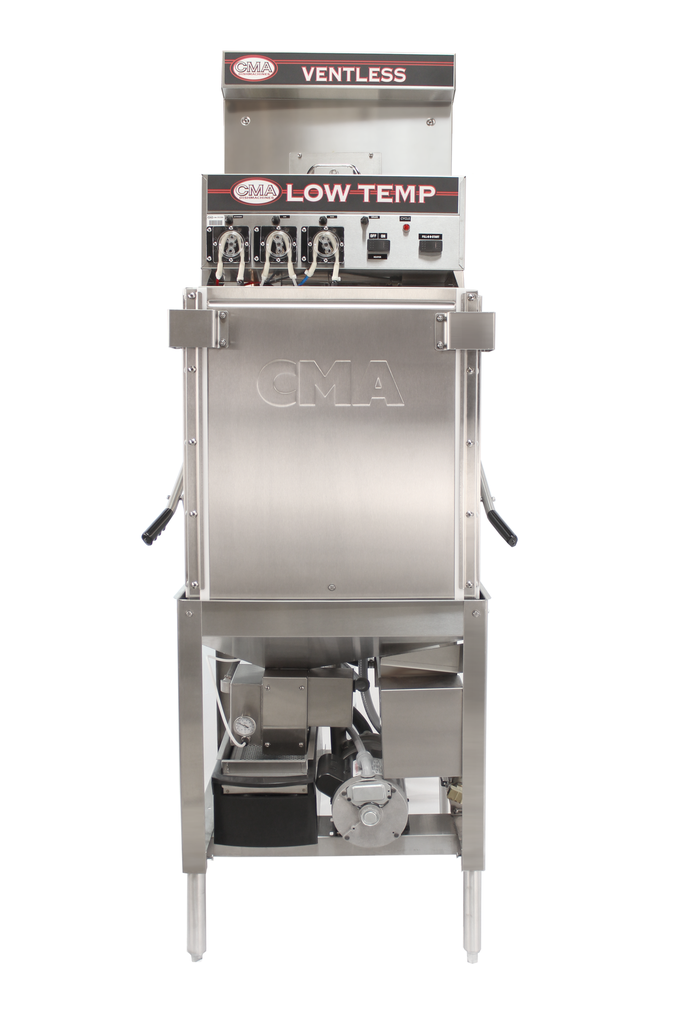

CMA Dishmachines EST-VL Low Temp Ventless Dishwasher with Booster, 115V
CMA Dishmachines | SKU CMA-1635-00
Categories: Dishwashers
Ventless, low temperature chemical sanitizing dishwasher. The HR waste air heat recovery system evacuates the chamber at the end of the cycle, so no hood is required.
Tags :
| Brand | CMA Dishmachines |
| Dimensions (L x l x H) | 104.1 x 104.1 x 218.4 cm |
CMA spec sheet (EN) / Fiche technique CMA (EN)
Download
Ventless, low temperature chemical sanitizing dishwasher. The HR waste air heat recovery system evacuates the chamber at the end of the cycle, so no hood is required.
- Ventless: no hood required
- HR waste air heat recovery evacuates the chamber at the end of the cycle
- Built-in booster heater
- 30 racks per hour, 1.09 gallon of water per rack
- Built-in chemical pumps
| Model | CMA EST-VL |
|---|---|
| CMA part number | 01635.00 |
| Sanitizing | Chemical (low temperature) |
| Capacity | 30 racks per hour |
| Water consumption | 1.09 gal per rack (4.13 L) |
| Electrical | Machine 115V 1-phase 16A; booster heater 208/240V 3-phase 25/29A or 208/240V 1-phase 43/50A |
| Wash temperature | 120°F min. / 140°F recommended (49 / 60°C), incoming hot water |
| Rinse temperature | 120°F min. / 140°F recommended (49 / 60°C), incoming hot water |
| Dimensions (W x D x H) | 25 x 29-1/2 x 85-1/4 to 86-1/4 in |
| Shipping weight | 400 lb (181.4 kg) |
