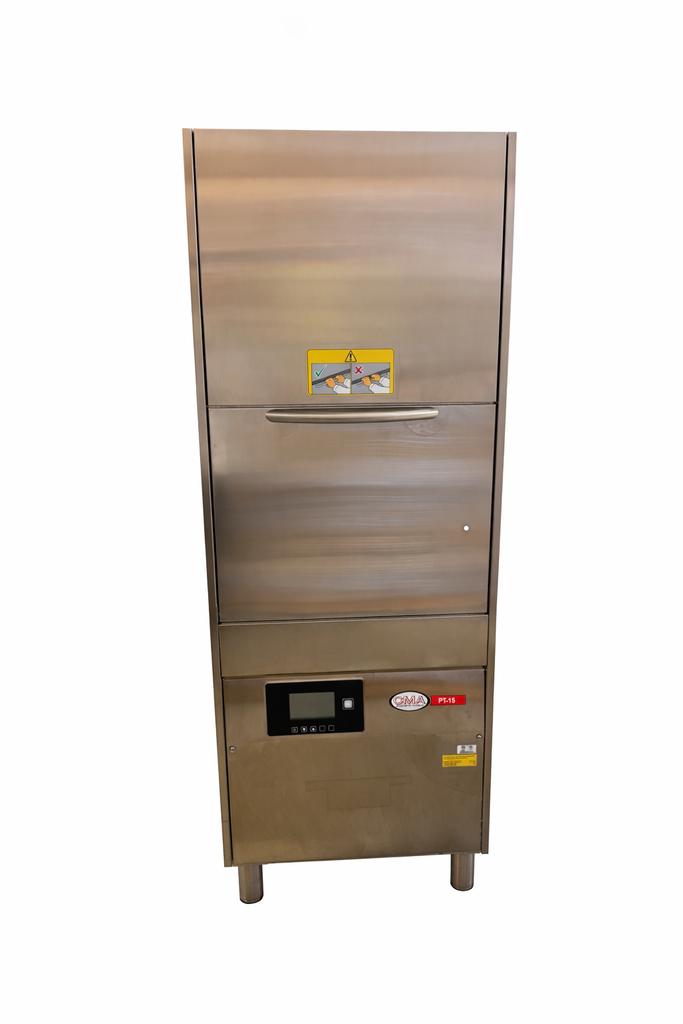

CMA Dishmachines PT-15 XL High Temp Pot and Pan Washer, 208-240V 3-Phase
CMA Dishmachines | SKU CMA-1688-00
Categories: Dishwashers
Extra large, high temperature pot and pan washer. A split door opens to a 31-3/4 in opening for sheet pans and large pots, with four automatic cycles of 5, 6, 8 or 10 minutes.
Tags :
| Brand | CMA Dishmachines |
CMA spec sheet (EN) / Fiche technique CMA (EN)
Download
Extra large, high temperature pot and pan washer. A split door opens to a 31-3/4 in opening for sheet pans and large pots, with four automatic cycles of 5, 6, 8 or 10 minutes.
- 31-3/4 in opening for sheet pans and large pots
- Four automatic cycles: 5, 6, 8 or 10 minutes
- Pumped final rinse
- Includes a 21-3/4 x 26-1/4 in stainless rack
- High temperature sanitizing
| Model | CMA PT-15 |
|---|---|
| CMA part number | 01688.00 |
| Sanitizing | High temperature |
| Capacity | 12, 10, 7 or 6 racks per hour (5, 6, 8 or 10 minute cycles) |
| Water consumption | 1.1 gal per rack (4.16 L) |
| Maximum clearance | 31-3/4 in |
| Electrical | With booster: 208V 3-phase 32.2A / 240V 3-phase 35.3A |
| Wash temperature | 165°F min. (74°C) |
| Rinse temperature | 185°F min. (85°C) |
| Dimensions (W x D x H) | 27-1/4 x 31-1/2 in; 90-1/4 in high with door open |
| Shipping weight | 475 lb (215.5 kg) |
