DryPaths DP-2478 – Walkway Heating Mat 78" x 24", 540 W
DryPaths | SKU DRX-DP-2478
Categories: Matting
DryPaths DP-2478 heated walkway mat, the longest in the range at six and a half feet. 78" x 24" (198 x 61 cm), 120 V, 540 W, 4.5 A. Up to 2 mats on one cord on a 15 A circuit. Power cord sold separately. 5-year warranty.
Heated Mats for Snow Melting
Drypaths heating mats are designed with everyone's safety in mind. By preventing the buildup of snow and ice, they are ideal for residential and commercial entrances, staircases, emergency exits, and pedestrian walkways. Perfect for access ramps as well, these mats cater to the needs of individuals with reduced mobility, offering protection against slips, falls, and injuries.

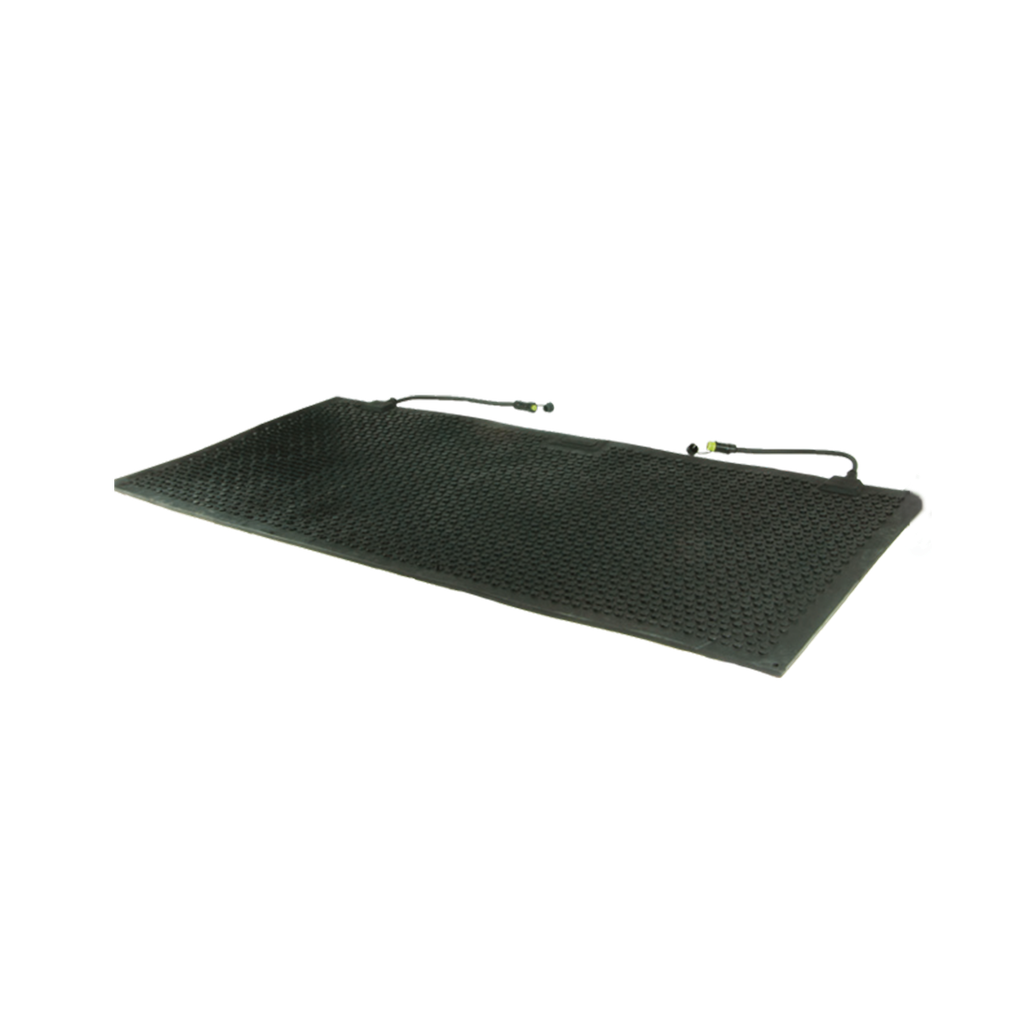

DryPaths DP-2478 heated walkway mat
The longest mat in the range, at six and a half feet. Covers the most ground per unit, which makes it the efficient choice for a straight run of sidewalk or a long approach to an entrance.
Specifications
| Model | DP-2478 |
| Application | Walkway, sidewalk, long approach |
| Size | 78 in. x 24 in. (198 x 61 cm) |
| Thickness | 0.3 in. (8 mm) |
| Voltage | 120 V |
| Power | 540 W |
| Current | 4.5 A |
| Weight | 36.5 lb (16.55 kg) |
| Surface temperature | 55 to 65 °C (130 to 150 °F) |
| Material | 100 % recycled rubber, UV resistant, waterproof |
| Warranty | 5 years against defects in materials and workmanship |
How many can be connected together?
Mats link to each other through integrated watertight connectors and run from a single power cord. On a standard 15 A / 120 V circuit the manufacturer allows a maximum continuous load of 12 A (1,440 W), which is up to 2 DP-2478 mats on one cord. A third mat exceeds the circuit and needs its own.
What else you need
The power cord is a separate item and one cord serves the whole run. Choose DPGFCI-10 (10 ft, with in-line GFCI) where the receptacle is not already GFCI protected, or DPCCF120-10 (10 ft, no GFCI) where it is. Interconnect extension cables DPCCMF24 through DPCCMF50 are available if the layout needs extra reach.
Important
Outdoor use only. Do not operate above 5 °C (40 °F) ambient. GFCI protection is required. Plug directly into a properly grounded outlet, never through a household extension cord. Secure using the 3/8 in. corner grommets or 3M VHB 4941 tape. Clean and store flat indoors at the end of the season.
Tapis chauffant DryPaths DP-2478 pour allée piétonnière
Le plus long tapis de la gamme, à six pieds et demi. C'est celui qui couvre le plus de surface par unité, donc le choix efficace pour un trottoir en ligne droite ou une longue approche d'entrée.
Fiche technique
| Modèle | DP-2478 |
| Application | Allée, trottoir, longue approche |
| Dimensions | 78 po x 24 po (198 x 61 cm) |
| Épaisseur | 0,3 po (8 mm) |
| Tension | 120 V |
| Puissance | 540 W |
| Intensité | 4,5 A |
| Poids | 36,5 lb (16,55 kg) |
| Température de surface | 55 à 65 °C (130 à 150 °F) |
| Matériau | Caoutchouc 100 % recyclé, résistant aux UV, étanche |
| Garantie | 5 ans contre les défauts de matériaux et de fabrication |
Les tapis se raccordent entre eux par connecteurs étanches intégrés et fonctionnent à partir d'un seul cordon. Sur un circuit standard de 15 A / 120 V, le fabricant permet une charge continue maximale de 12 A (1 440 W), soit jusqu'à 2 tapis DP-2478 sur un même cordon. Le cordon d'alimentation est vendu séparément (DPGFCI-10 avec DDFT intégré, ou DPCCF120-10 sans DDFT). Usage extérieur seulement. Ne pas utiliser au-dessus de 5 °C (40 °F). Protection DDFT obligatoire.
Données techniques tirées du guide d'installation et de sécurité DryPaths de Drexma Industries, rév. 10-2024.
| Brand | DryPaths |
Drypaths heating mats are designed with everyone's safety in mind. By preventing the buildup of snow and ice, they are ideal for residential and commercial entrances, staircases, emergency exits, and pedestrian walkways. Perfect for access ramps as well, these mats cater to the needs of individuals with reduced mobility, offering protection against slips, falls, and injuries.
- Made from 100% recycled rubber
- Highly durable for harsh winter conditions
- One-piece design with a 1/2” thickness
| Voltage (V) | 120 V |
| Power | 120W, 1A | 270W, 2.3A | 420W, 3.5A |
| Thickness | 1/2" |
| Warranty | 5 years |
